为什么选择燕尾夹具?

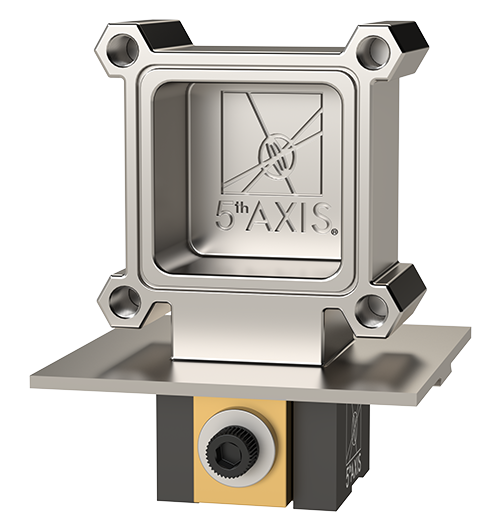

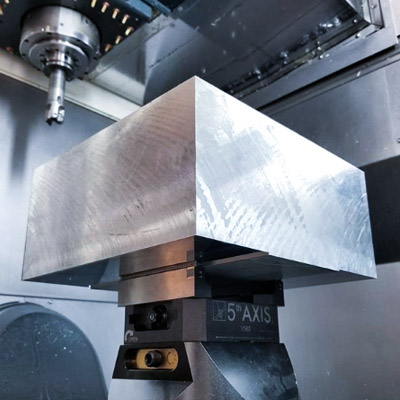

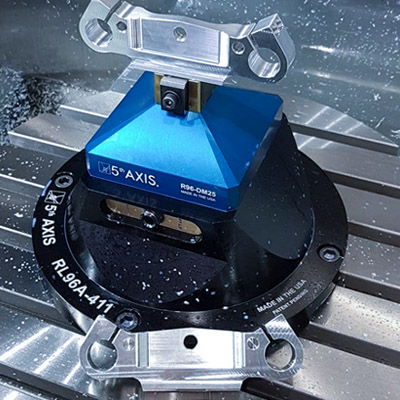

因为可夹持更大一些的工件

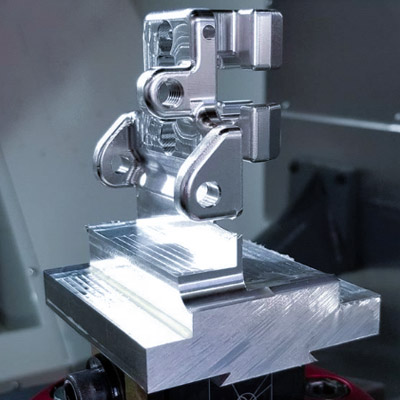

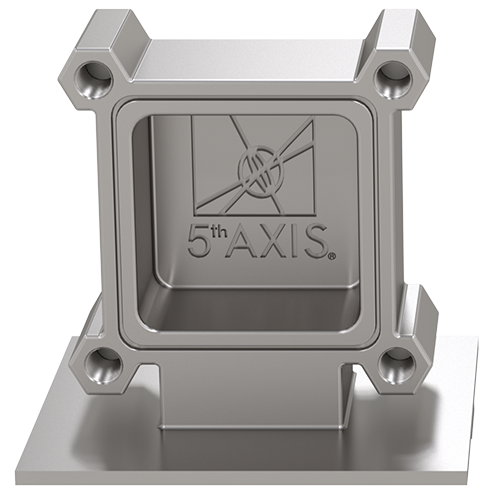

...也可以是小的工件

浏览燕尾夹具
零件稳定性
高重复性
无限可能
机械式锁定
Dovetails provide equal in and down force, meaning your parts are held more stable than any other workholding method. Minimal torque is required. The dovetail is one of the oldest and strongest joints known to man kind. If you need compact workholding with high repeatability and the ultimate precision, then you need a dovetail fixture.

All 5th Axis products utilize a 45 degree dovetail angle.

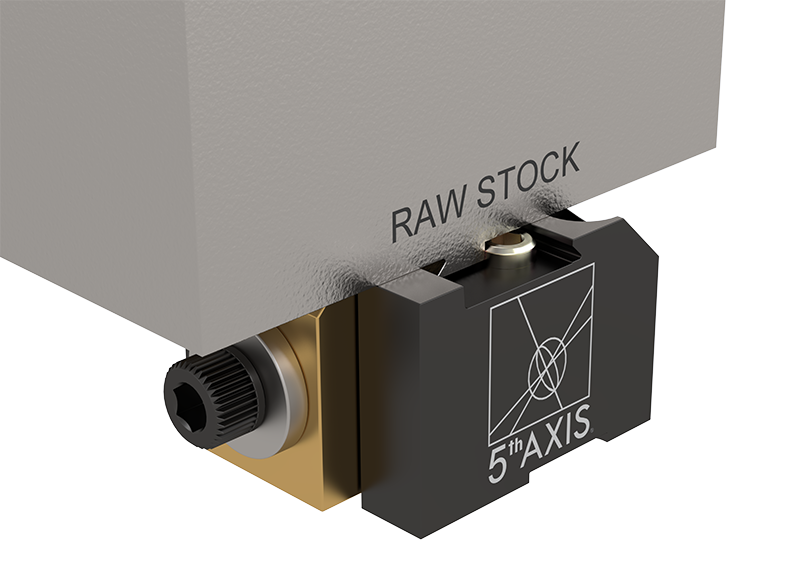

定位/精确定位销
A precision locating pin ensures the stock is centered in the fixture while ensuring the stock cannot be forced out of the fixture during machining. The locating pin also provides high repeatability for in process inspection / movement from machine to machine.

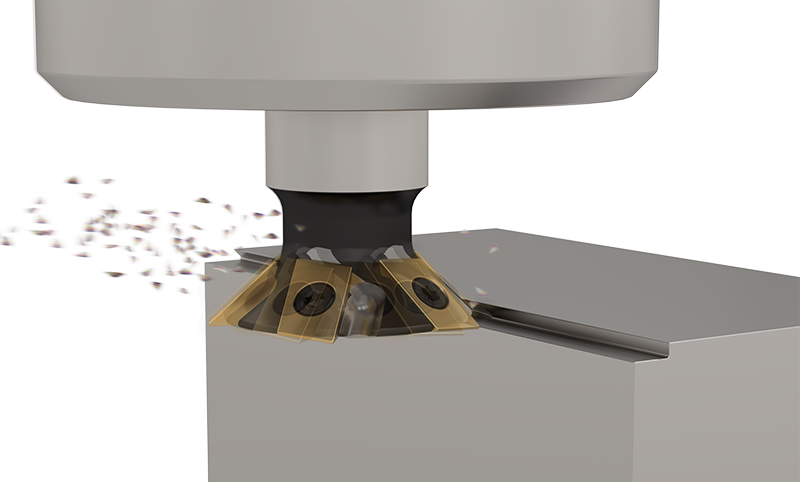

快速/简单的准备操作
Dovetailing a part is a quick, simple machining operation that prepares your stock for our dovetail fixtures / vises. A small time investment on the front ends equals unmatched holding power– and unmatched precision– for the rest of your manufacturing process.

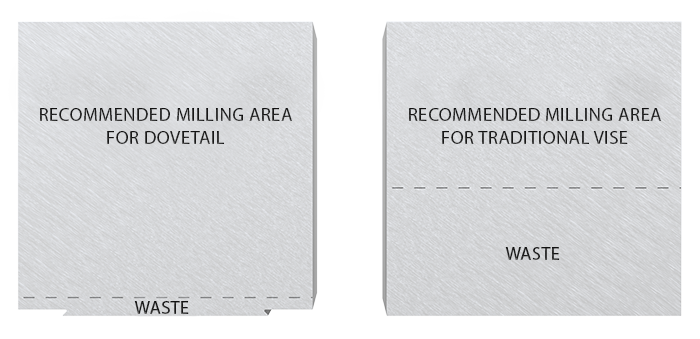

节约材料
Dovetailing reduces the amount of material you need to purchase via traditional clamping methods. Not only do you waste less of your stock, but dovetailing also reduces part deformation due to excessive torque; dovetails spread clamping force more evenly through the part and use downforce instead of lateral pressure.

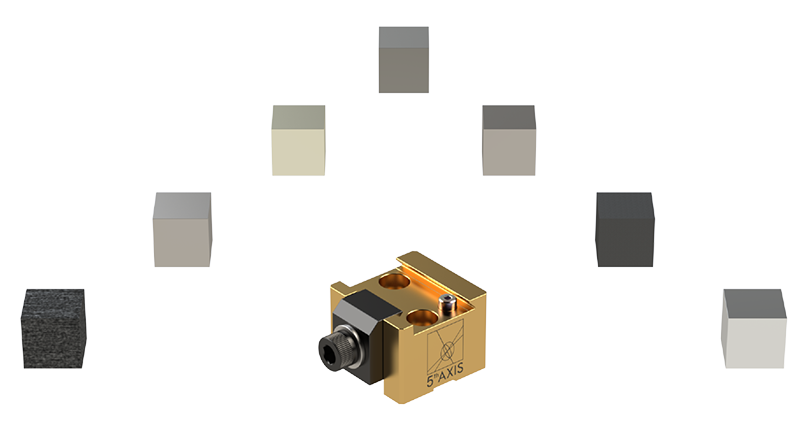

可夹持各种材料
5th Axis Dovetails can hold the majority of materials on the market today, everything from fragile graphite to ultra-hard high temp alloys.
浏览燕尾夹具
